Fixed Frame Windows and Doors Profile Finder

Search the fixed-frame windows & doors profile library (2001 + 2002 series) — by code, name, or where it goes.

Filter by position

All positions

Head

Sill

Jamb

Mullion

Transom

Bead

Corner

Add-on

PM757 section
PM75767 × 45 mm
Head
Horizontal top member whose glazing pocket faces down so the glass slots up into it and a bead clamps it. Used in: Head.
Head
Open in 3D →
PM758 section
PM75867 × 45 mm
Frame (sill / transom / 45mm head)
The base frame member used as the sill, the transom frame, and the 45mm multi-row head frame; takes the PM759 bead (PM758+PM759 reads like PM757). Used in: Head, Sill, Transom.
Head
Open in 3D →

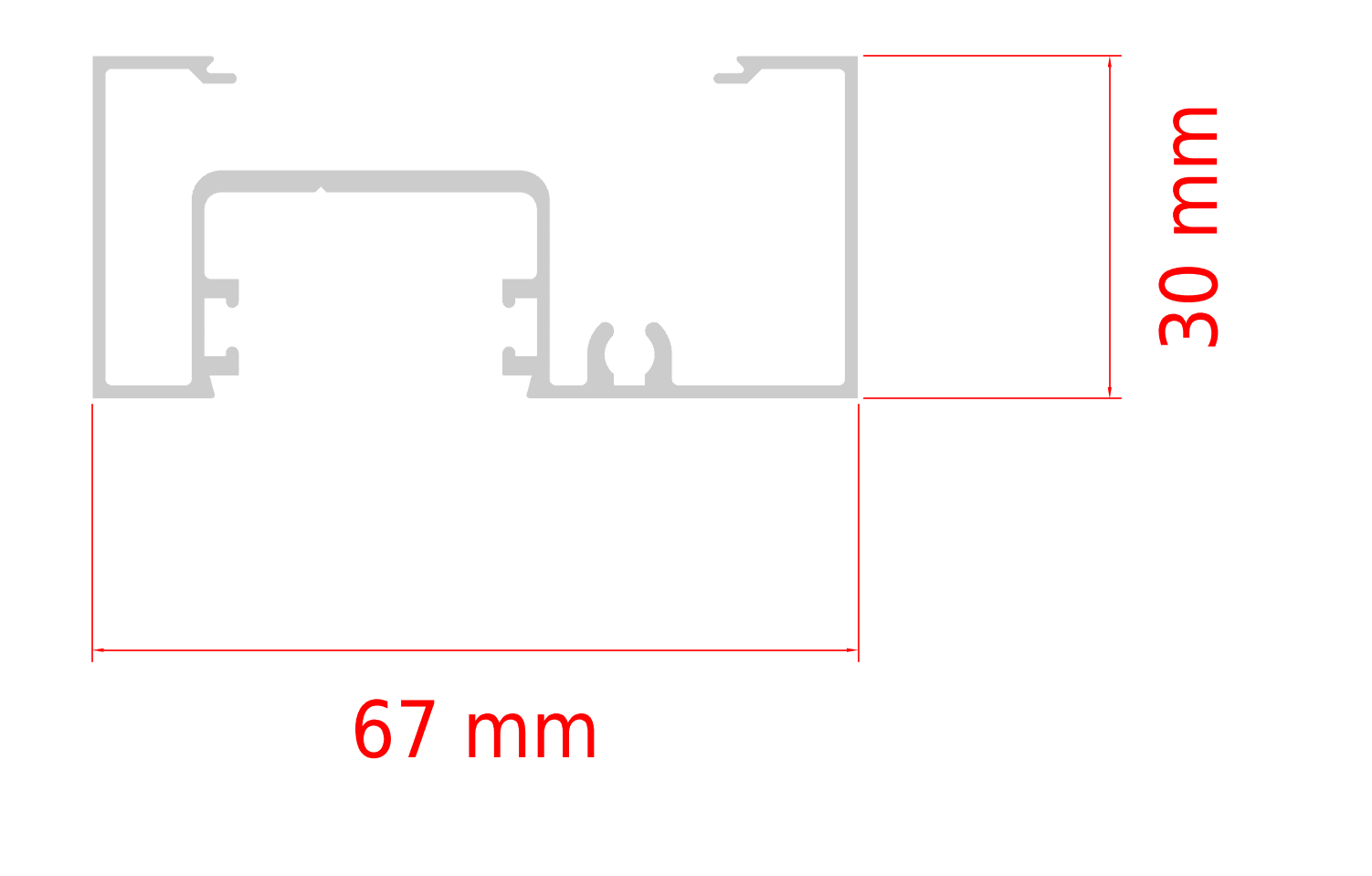

PM748 section
PM74867 × 30 mm
Reveal jamb
Vertical side member (left + right, mirrored) running the full 67mm frame depth into the reveal. Used in: Jamb.
Jamb
Open in 3D →
PM762 section
PM76252.7 × 67 mm
Mullion (male)
Vertical intermediate member between panels; the male half that clamps into the female mullion (with a PM020 V-seal). Used in: Mullion.
Mullion
Open in 3D →
PM761 section
PM76128 × 67 mm
Mullion (female)
Vertical intermediate member between panels; the female half that the male mullion snaps into. Used in: Mullion.
Mullion
Open in 3D →
PM763 section
PM76367 × 45 mm
Box transom
Hollow box section used as the divider between stacked rows in the 45mm build. Used in: Transom.
Transom
Open in 3D →
PM759 section
PM75931 × 30.5 mm
Glazing bead
Clips into the PM758/PM757 pocket after the glass is in to clamp the pane against the rubber wedges. Used in: Bead.
Bead
Open in 3D →
PM764 section
PM76426.9 × 15.6 mm
DG pocket filler
Fills the glazing pocket where there is no glass (double-glazing pocket filler). Used in: Add-on.
Add-on
See add-on in 3D →
PM760 section
PM76067 × 27.7 mm
Transom adaptor
The lower piece of the 64/65mm 3-piece transom; pairs with PM758 + PM759 to form the divider between stacked rows. Used in: Transom, Add-on.
Transom
Open in 3D →
PM395 section
PM39545.6 × 27 mm
Reveal adapter
Reveal/packing adapter that appears in the 45mm head detail and snaps onto the head or jamb. Used in: Head, Jamb, Add-on.
Head
Open in 3D →
PM387 section
PM38775 x 75 mm
Corner coupler
90° corner coupler — a hollow section (inner + outer walls) that snaps onto the jamb to make corner / angle windows. Used in: Corner.
Corner
See add-on in 3D →
PM765 section
PM76526.9 × 35.6 mm
Awning sash adapter
Awning sash adaptor — snaps into the glazing pocket in the place a sash would sit. Used in: Add-on.
Add-on
See add-on in 3D →
PM100 section
PM100100 × 45 mm
Frame
Main 100 × 45 frame section; the glass sits in the centre pocket and a PM103 bead clamps it. Used in: Head T1 (subhead) - opt 1, Transom T2 (brick), Left jamb T1 (subhead), Right jamb T1 (subhead), Mullion T2 (brick).
Head
Open in 3D →
PM167 section
PM167100 × 45 mm
Light weight frame
Used in: Head T1 (subhead) - opt 2, Left jamb T1 - opt 2, Right jamb T1 - opt 2.
Head
Open in 3D →
PM102 section
PM102100 × 45 mm
Sill
Used in: Head T2 (brick) - opt 1, Sill T1 (subhead) - opt 1, Sill T2 (brick) - opt 1, Transom T1 - opt 1.
Head
Open in 3D →
PM115 section
PM11580 × 40 mm
100mm reveal adaptor
Used in: Head T2 (brick) - opt 1, Sill T2 (brick) - opt 1.
Head
Open in 3D →
PM103 section
PM10341 × 26 mm
Glazing bead
Clips into the centre pocket after the glass is in, clamping the pane against the wedges. Used in: Head T2 (brick) - opt 1, Head T2 (brick) - opt 2, Sill T1 (subhead) - opt 1, Sill T1 (subhead) - opt 2, Sill T2 (brick) - opt 1, Sill T2 (brick) - opt 2, Transom T1 - opt 1.
Head
See add-on in 3D →
PM113 section
PM113100 × 64 mm
COC infill
Used in: Head T2 (brick) - opt 2.
Head
Open in 3D →
PM168 section
PM168100 × 45 mm
Light weight sill
Used in: Sill T1 (subhead) - opt 2.
Sill
Open in 3D →
PM133 section
PM133100 × 64 mm
L/W reveal sill
Used in: Sill T2 (brick) - opt 2.
Sill
Open in 3D →
PM110 section
PM11080 × 20 mm
Glazing adaptor
Used in: Transom T1 - opt 1, Transom T2 (brick), Mullion T2 (brick).
Mullion
Open in 3D →
PM131 section
PM13164 × 100 mm
L/W reveal frame
Used in: Left jamb T2 (brick), Right jamb T2 (brick).
Jamb
Open in 3D →
PM108 section
PM10842 × 100 mm
Male mullion
Vertical member between panels — the male half that clamps into the female mullion. Used in: Mullion T1 (subhead).
Mullion
Open in 3D →
PM107 section
PM10722 × 100 mm
Female mullion
Vertical member between panels — the female half that the male mullion snaps into. Used in: Mullion T1 (subhead).
Mullion
Open in 3D →
PM118 section
PM118100 × 100 mm
Corner post (100x100, 90 deg)
90° corner post — a hollow 100 × 100 section that joins two frames to make corner / angle windows. Used in: Corner coupler.
Corner
See add-on in 3D →
